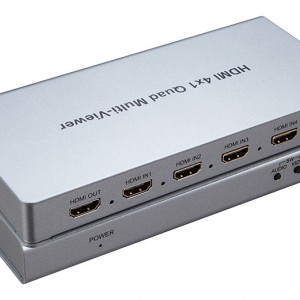

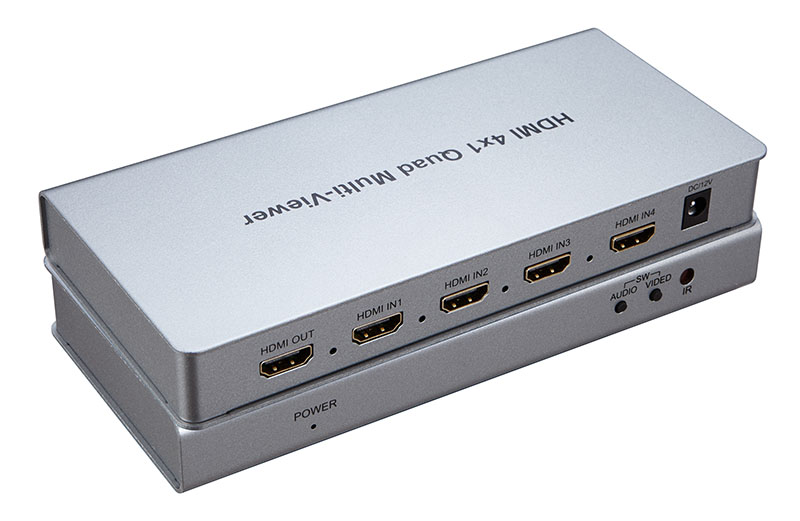

HDMI 4×1 Quad Multi-viewer

hdmi-switcher-1

Product describe : HDMI 4×1 QuadMulti-viewer is a high performance with four HD screen segmentation andseamless switching output switch. It candisplay 4HD digital video signal on the same screen, and has a variety of vi…


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/mteksolu/public_html/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 17
SKU: HDSW4-Q. Categories: , .

Product Description

Functional Description:

Features:

Support 4HDMI input, 1 HDMI output

Support 4 channels HDMI signal screen segmentation

Support 4 channels HDMI signal seamless switching

Support highest resolution up to 1080P/60Hz

Support IR control

Compatible HDMI1.3a, HDCP1.2, input compatible DVI1.0 version

Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on

Support audio output format: PCM2

Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres

DC12V/2A power adapter

Net weight: 350g

Dimension (L x W x H): 19cm*9cm*2.3cm

Product Standard:

Package include :

1. HDMI 4×1 quad multi-viewer x1

2. 12V/ 2A power adapter x1

3. IR cable x1

4. Remotecontrol x1

5.User manual x1
