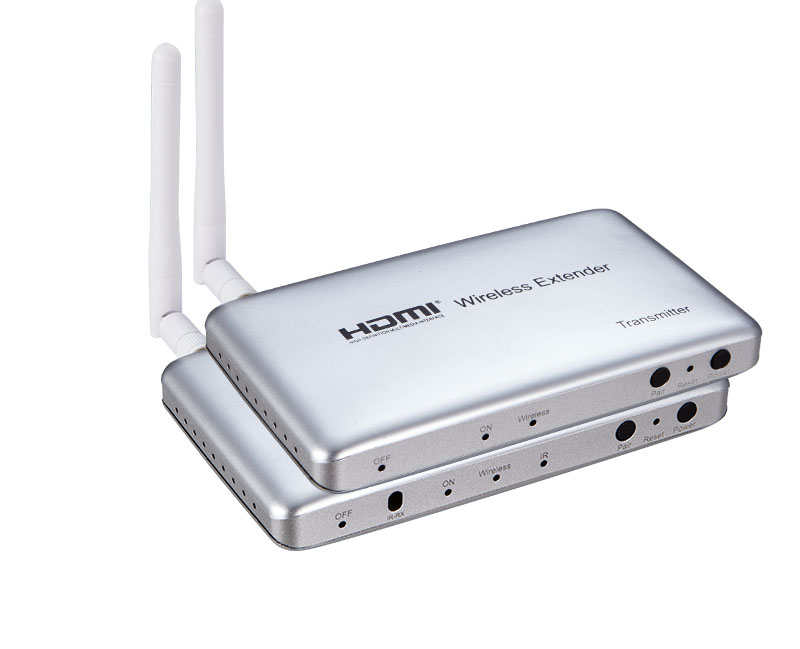

Product Description
Functional Description:
Features
Support HDMI 1.4a version
Support HDCP1.3
Wireless conform to IEEE802.15.4 and IEEE802.11
Support input & output the highest resolution up to 1920×1080/60Hz
Support transmitter the highest resolution up to 720P/60Hz
Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
Working in 5G frequency band, it is not easy to be interfered by Wireless signals
The longest distance can be 50m (Under the condition of open area)
5V/1.5A power adaptor
Product Description:
Specifications:
HDMI version …………………………………………………….…………….. HDMI 1.4a
HDMI resolution ………………………………….….…….…………up to 1920×1080/60Hz
Support audio format…………………….….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………..………………………………..…….148.5MHz
Max baud rate……………….…….…….…..……………..……………………..1.485Gbps
Input cable distance….…….….. (1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance.……….…(1080p resolution) ≤8m AWG26 HDMI standard cable
Transmitter Max working current……………………………………………………..850mA
Receiver Max working current………………………………………………………..450mA
Power adapter format……..….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1.5A
Operating Temperature range………………………………………………(-15℃ to +55℃)
Dimension (L x W x H)…………………………..…………………………….136x78x23 (mm)
Weight…….…..………………………………………………..…….……………………115g
