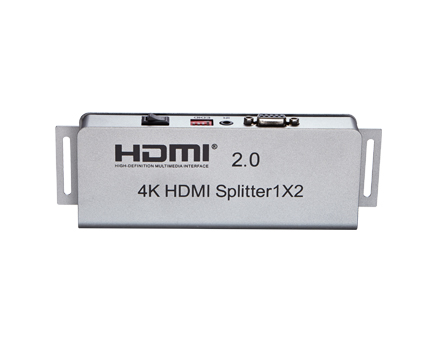

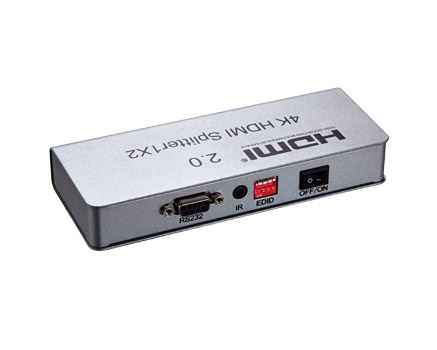

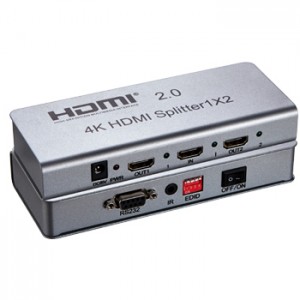

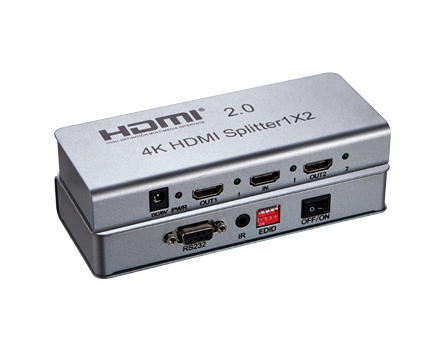

1×2 HDMI 2.0 Splitter with IR extension


Product describe : 4K 1×2 HDMI 2.0 splitter with HDCP 2.2, IR extender, EDID management,RS232

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/mteksolu/public_html/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 17
SKU: SFX911-2. Category: .

Product Description

Functional Description:

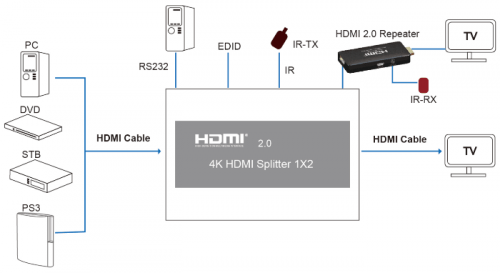

The 1×2 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, it is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source.

Product standard:

1.Support HDMI 2.0 ,HDCP2.2
2.Support 3D video format
3.Support high resolution up to 3840X2160/60HZ
4.Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
5.Support 8/10/12 bit deep color
6.Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
7.Support single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
8.Built-in IR extension function.( it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
9.Support serial port online upgrade
10.Support EDID management
11.5V/2A power adapter
