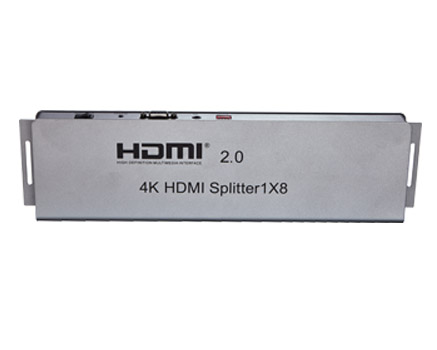

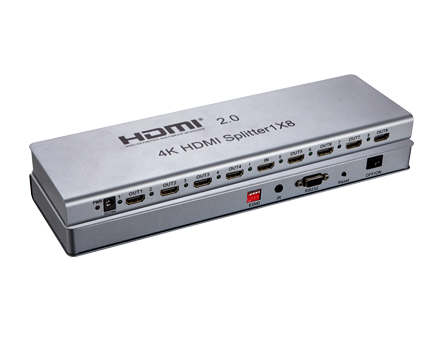

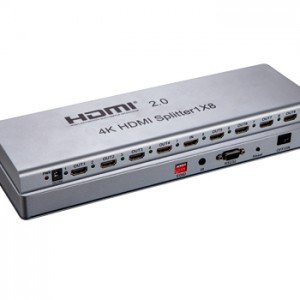

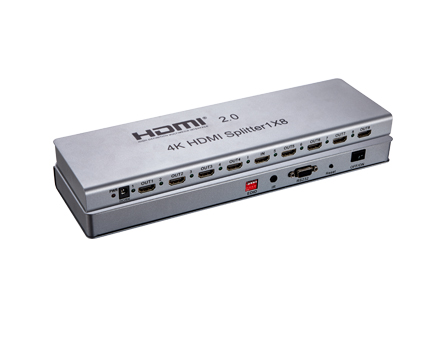

1×8 HDMI 2.0 splitter with IR extension


Product describe : 1×8 HDMI 2.0 splitter with HDCP 2.2, support 4k, IR extension, EDID management, RS232

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/mteksolu/public_html/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 17
SKU: SFX911-8. Category: .

Product Description

Functional Description:

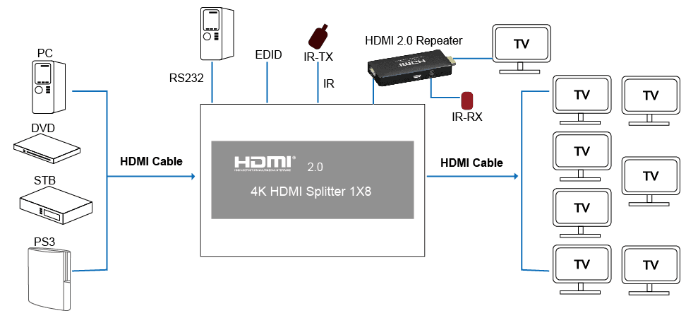

This 1×8 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

This splitter supports EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is also built-in IR extension function, can work with our hdmi 2.0 repeater which has IR-RX receiving the IR command to control the source

Product Standard:

Support HDMI 2.0 ,HDCP2.2

Support 3D video format

Support high resolution up to 3840X2160/60Hz

Support highest rate of 6 G and TMDS clock can be up to 600 MHz

Support 8/10/12 bit deep color

Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.

Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

Built-in IR extension function

Remote control the source (via the IR-RX of HDMI repeater which splitter works with to receive the IR command)

Support serial port online upgrade

Support EDID management

5V/3A power adapter
