1×4 HDMI 2.0 splitter with IR extension

14

Product describe : HDMI 2.0 splitter 1×4 with HDCP 2.2, Support 4k, IR extension, EDID management, RS232

SKU: SFX911-4. Category: .

Product Description

Functional Description :

This 1×4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

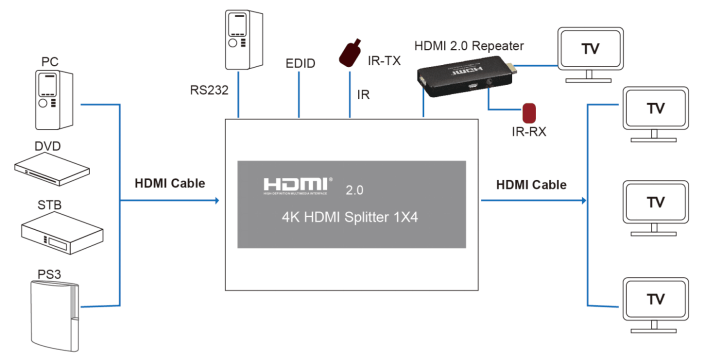

This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source

Product Standard:

Support HDMI 2.0 ,HDCP2.2

Support 3D video format

Support high resolution up to 3840X2160/60HZ

Support the max baud rate of 6G and TMDS clock can be up to 600 MHz

Support 8/10/12 bit deep color

Support AWG26 HDMI standard cable:

when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

when the resolution is 4K, input up to 8 meters, output up to 8 meters.

Support single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)

Support serial port online upgrade

Support EDID management

5V/2A power adapter
