Product Description
Functional Description:

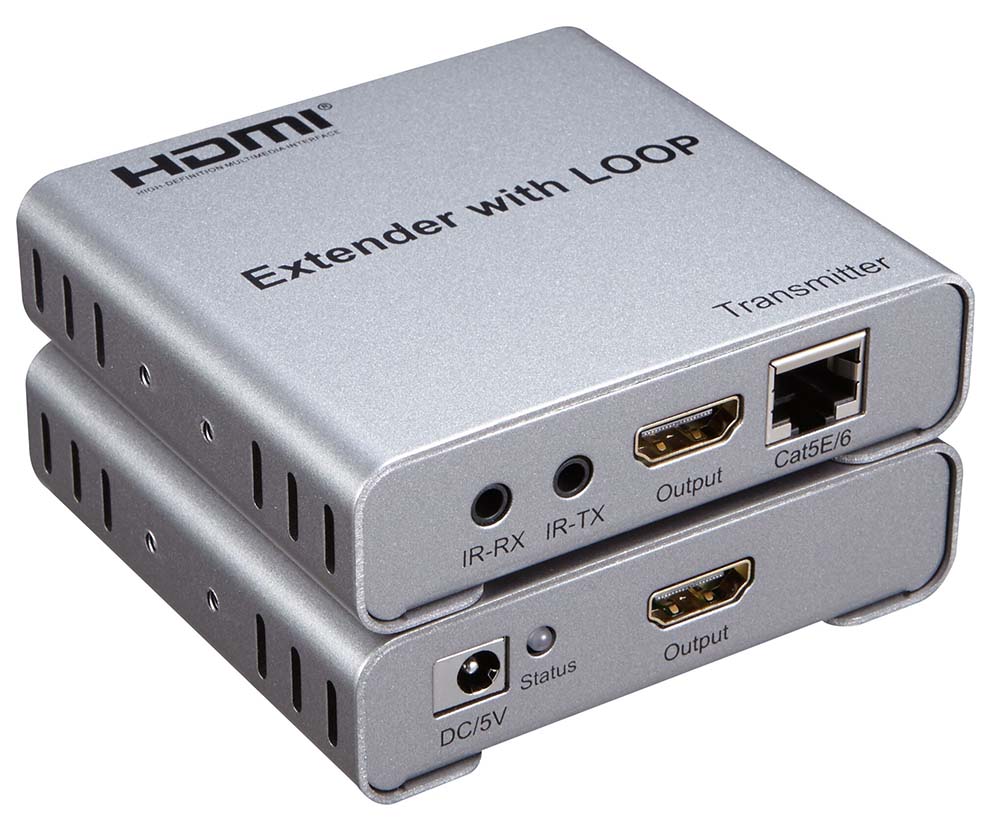

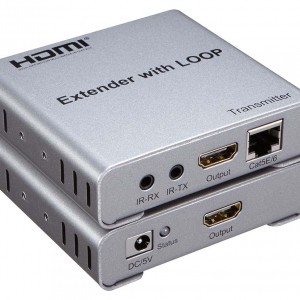

The HDMI Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 50 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Product Standard:
FEATURES:
Support HDMI 1.4a
Support 3D
Support highest video resolution 1080p/60Hz
Support Bi-directional IR Control
Support 1.49Gbps data rate and tmds clock up to 148.5MHz
Support 8 bit deep color
The transmitter support HDMI loop-out function.
The transmitter support EDID management.
Support AWG26 HDMI standard cable, HDMI input up to 10 metres, HDMI output up to 10 metres
Double legged transmission: By using single cat-5e or cat-6(recommended) cable to connect the transmitter and receiver, it can extend the distance up to 50 meters between TX and RX, the quality of the cable will influence the transmission distance.
Need DC5V/1A power supply
Specification:
Length of CAT-6/CAT-5E cable between Rx and TX……………………….…..Up to 50 meters
HDMI Input…..………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format.………………………………………………………DTS/Dolby/PCM
Support audio input..………………………………DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output…..……….……………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max transmission bandwidth……………………………………….………………………148.5MHz
Max baud rate……………….…….…………….………….……………………………1.49Gbps
Input video signal ………….…………………..………………………….…… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TTL)
Input HDMI cable distance………….……………………..≤10m AWG26 HDMI standard cable
Output HDMI cable distance………………………………….. ≤10m AWG26 HDMI standard cable
TX Max working current………………………………………………….…………………650mA
RX Max working current……………………………………………………………………300mA
Power adapter format……….………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..………….………………………………… (-15 to +55℃)
Operating Humidity range……………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………81×87.5×23.5 (mm)
TX Weight…..…………………………………..……………………………..………210g
RX Weight………………………………………………………………………………………………………..200g
