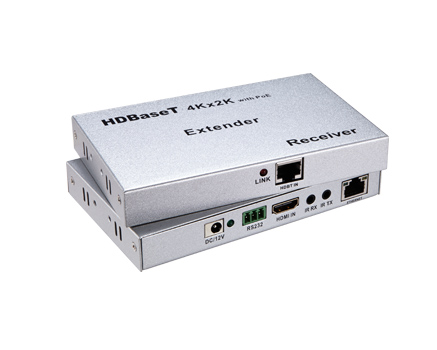

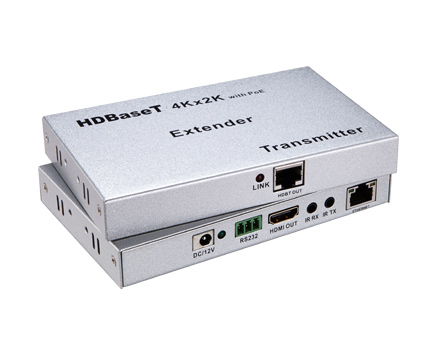

100M ultrathin HDBT Extender with POE

hdbt-extender

Product describe : 100M ultrathin HDBT Extender Support HD BaseT,4Kx2K, POE , RS232,Bi-directional IR

SKU: HDES07. Categories: , .

Product Description

Functional Description:

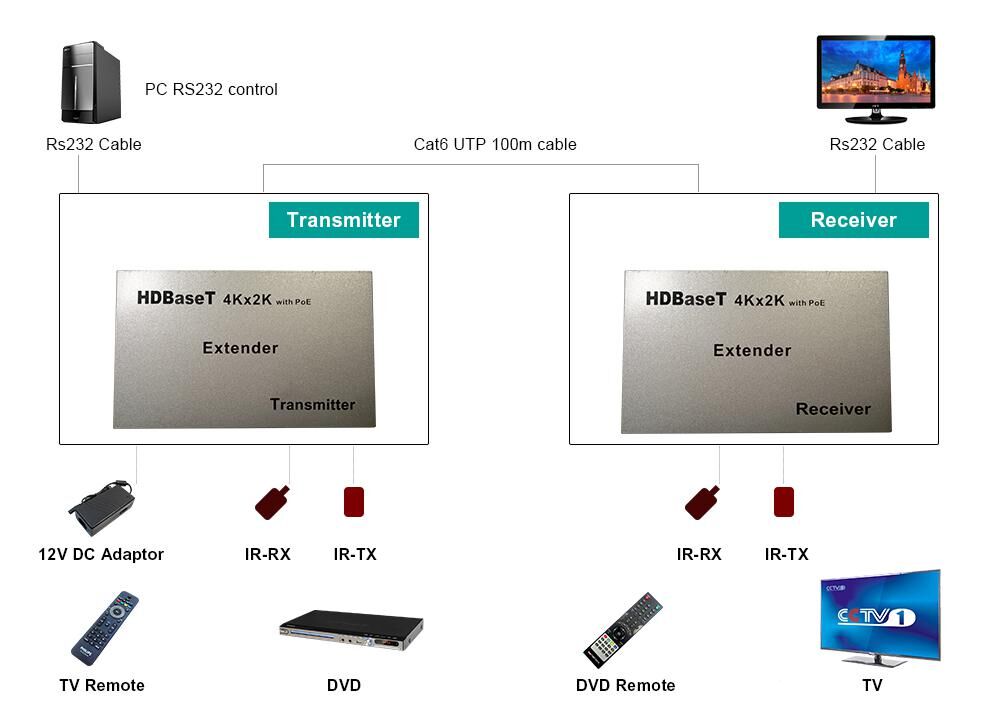

This HDBT Extender 100m supports bi-directional IR control, RS232, with POE function,ultrathin design. No loss of quality, installs in minutes and stabilize in product.

Product Standard:

Support HDMI 1.4 Version

Support 3D video format

Support the highest resolution : 3840×2160/30Hz,(1080P/60Hz,1080i,720p)

Support the sampling frequency of sound: 44.1KHz ,48KHz

Support 36 bit deep color

Support the Max transmit distance over cat6 cable :

1)When input 1080P, the max distance is 100M

2)When input 4Kx2K, the max distance is 70M

Support bidirectional IR control, control the input resource devices and output displayer in receiving place

Support RS232 serial port

Support POE function

Power adaptor: DC12V/2A

Net Weight: 270g(TX) , 275g(RX

Dimension(L x W x H): 138x84x19mm

ultrathin design
