Mini HDMI splitter 1×2

mini-hdmi-splitter-12

Product describe : This Mini HDMI splitter 1×2(101mmx42mmx16mm) support HDMI resolution up to 3840×2160/30Hz, HDMI 1.4b, full 3D, with HDCP 1.4

SKU: HDSP2-G. Categories: , .

Product Description

Functional Description:

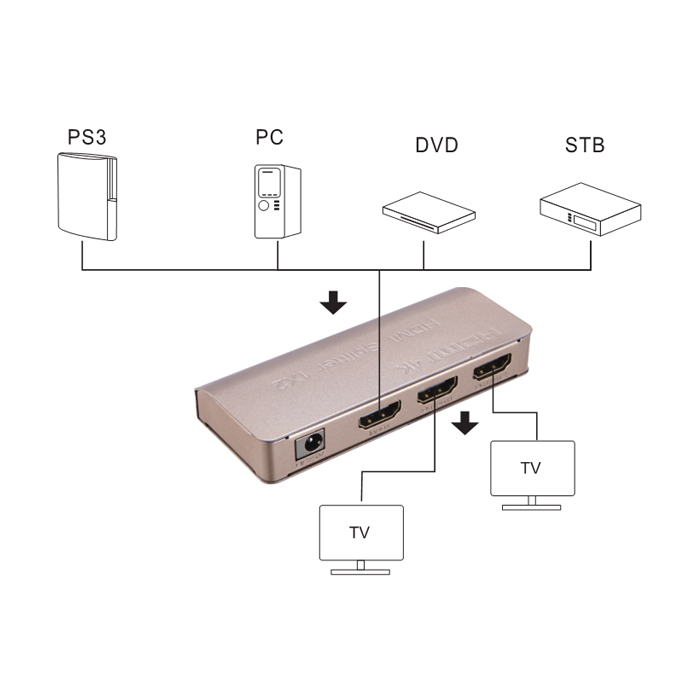

The HDMI Splitter 1×2 uses a single HDMI source, accessing to multiple HDMI sinks. The splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 3840×2160/30HZ.

Product Standard:

HDMI version : HDMI 1.4b

HDMI resolution : UP TO 3840*2160/30Hz

Support video color format : 8/ 10/12bit deep color

Support audio format : DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth : 340MHz

Max baud rate : 3.4Gbps

Input cable distance :  ≤8m AWG26 HDMI standard cable

Output cable distance : ≤8m AWG26 HDMI standard cable

HDMI input : 1 HDMI

HDMI output : 2 HDMI

Max working current : 500mA

Specifications of power adapter Input : AC (50HZ, 60HZ) 100V-240V;output: DC5V

Operating Temperature range : (-15 to +55℃)

Operating Humidity range : 5 to 90%RH (No Condensation)

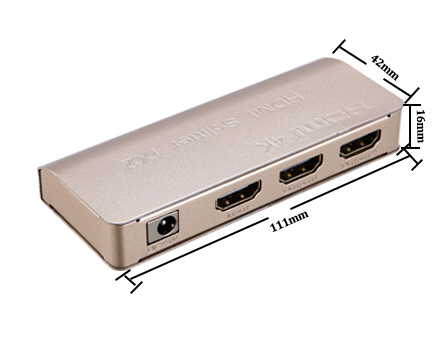

Dimension : (L x W x H) 101x42x16mm

Weight : 100g
