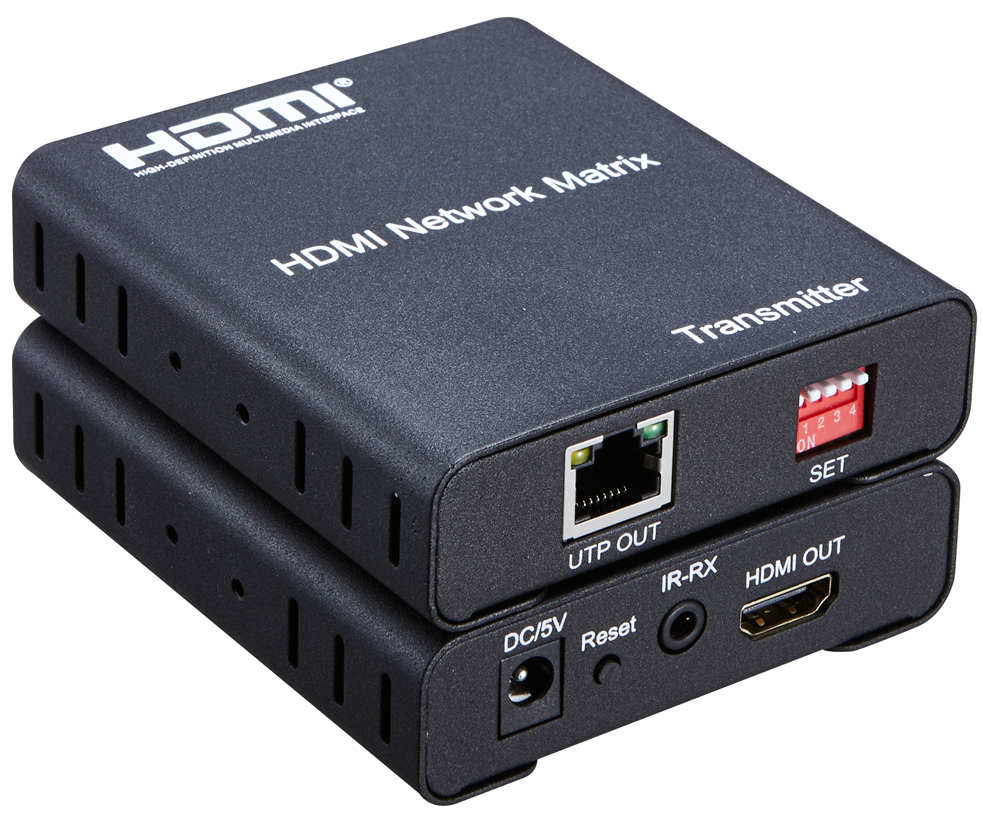

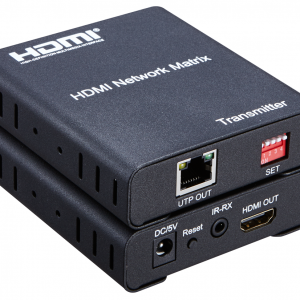

Product Description
Functional Description:
1. Support HDMI1.3/HDCP1.1&1.2
2.Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode.
3.Standard 802.3 Ethernet
4.Support one way IR extension.
5.Pure hardware design, plug and play, do not need to install additional software
Product Standard:
HDTV Resolutions : 480p,720p,1080p
Audio : Sample rate32kHz,44.1kHz,48kHz
IR remote control : 38kHz;NEC
HDMI : HDMI 1.3
HDCP : HDCP 1.2
Power adapter : DC5V/1A
Power consumption : HDMI Sender:3W HDMI receiver:3W
Size(L-W-H) : 92x79x28mm
Weight : 240g x 2
Operating Temperature/Humidity : 0℃-70℃/10%-80%RH(no condensation)
Storage Temperature/Humidity : -10℃-80℃/5%-90%RH(no condensation)
