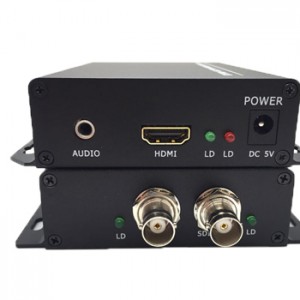

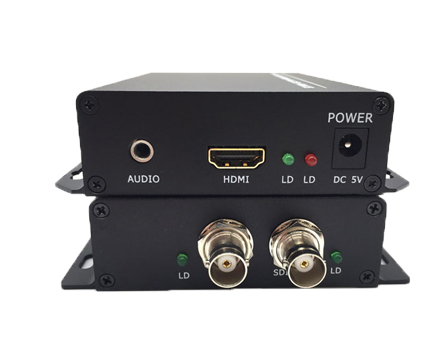

SDI to HDMI with SDI Loop + Separated Audio output


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/mteksolu/public_html/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 17
SKU: SDI06. Categories: , .

Product Description

Product Standard:

1:Input Video Format 3G, HD and SD-SDI ( auto-selected ), SMPTE-259/274/292/296/372/424/425, 2*BNC

2: Output Video Format HDMI V1.3a, 30/36 bit per pixel, RGB or YUV, SD, HD, 525i, 625i, 720p 50/59.94/60; 1080i /50/59.94/60; 1080p 23.98/24/25/29.9/30/50/59.94/60 HDMI Standard Type A Connector

3:Input Audio Format SDI Embedded audio, 24 bit/48KHz, 8 Channels Max. SDI Loop(optional)

4: Output Audio Formats HDMI Embedded audio, 24 bit/48KHz, 8 Channels Max.

5:Indicators Power-Green, Video Link-Yellow

6:Temperature Range 0 to 40 Degree Celsius ( Operation ); -20 to 60 7: with SDI Loop + separated audio output
